Products

• The new generation of HAVER EML 200 for test sieves with diameters of up to 203 mm can be used for dry and wet sieving of 3 kg bulk material maximum. It is the smallest 3D laboratory sieve shaker with an electromagnetic drive of HAVER & BOECKER. You can set and store sieving time, interval and amplitude for reproducible sieving results.


  Further advantages at a glance
  • two given regulated amplitudes to select from (fine and coarse)
  • set interval (10 sec.)
  • digital timerv • evaluation software CSA 5.0 basic license included when purchasing a new EML 200 test sieve shaker


  Technical data


  Sieve diameters	50 mm - 203 mm
  Sample weight	approx. 3 kg
  Weight of sieve set	maximal 8.7 kg
  Operating voltage	110 - 230 Volt, 50 - 60 Hertz
  Amplitude	two given regulated amplitudes to select from (fine and coarse)
  Timer	0-99 minutes or permanent operating
  Sound emission	≤ 70 dBA
  Weight	approx. 37 kg (without test sieves)
  Dimensions	385 x 285 x 900 mm (D x W x H)

• The HAVER EML 200 Premium offers a comfort improvement - the machine is much quieter than ever before. Transmission of vibrations to the base is greatly reduced utilising an improved dampening system. The extra-large display offers operators an excellent overview and is user-friendly. The new EML Premium is ideally suited for users who demand precision and reproducible sieve analyses.


  Advantages at a glance
  • three-dimension sieving action
  • extra quiet electromagnetic drive
  • free selectable amplitude up to 3 mm#
  • improved damping system
  • extra-large display of remaining sieving time
  • Ethernet interface
  • network-voltage- and frequency independent
  • CSA 5.0 Basic license included when purchasing a EML 200 test sieve shaker


  Technical data


  Sieve diameters	50 mm - 203 mm
  Sample weight	approx. 3 kg
  Weight of sieve set	max. 8.7 kg
  Operating voltage	110 - 230 Volt, 50 - 60 Hertz
  Amplitude	free selectable amplitude up to 3 mm
  Timer	0-99 minutes or permanent operating
  Sound emission	≤ 70 dBA
  Program memory locations	01 - 49
  Weight    approx.	37 kg, net
  Dimensions	385 x 295 x 800 mm (D x W x H)

• The HAVER EML 200 Premium Remote offers a separate control unit for wet sieving analysis. The design and function of the lid has been specifically developed. The full cone nozzle is elegantly integrated into the cover, offering improved handling. The cover includes an inspection glass to allow observation of material during the sieving process.


  Advantages at a glance


  The HAVER EML 200 Premium Remote offers all technological advantages of the Premium and additionally

  • new lid with integrated full cone nozzle
  • separate control gear
  • CSA 5.0 Basic license included when purchasing a EML 200 test sieve shaker


  Technical data


  Sieve diameters	50 mm - 203 mm
  Sample weight	approx. 3 kg
  Weight of sieve set	max. 8.7 kg
  Operating voltage	110 - 230 Volt, 50 - 60 Hertz
  Amplitude	free selectable up to 3 mm
  Timer	0-99 minutes or permanent operating
  Weight	approx. 40 kg, net
  Dimensions	385 x 295 x 800 mm (D x W x H)

• The 3D laboratory sieve shaker HAVER EML 315 digital plus for test sieves with diameters of up to 315 mm can be used for dry and wet sieving of 6 kg bulk material maximum. You can set and store sieving time, interval and amplitude for reproducible sieving results.


  Controlled sieving action
  • The 3D sieving action saves time and manual re-sieving.
  • Self-readjusting amplitude for comparable sieving results.

  Further advantages at a glance
  • Memory of 99 sieving programs.
  • Low-noise and maintenance free.
  • Test sieves can be changed easily by using the quick-release clamping system TwinNut.


  Memory of 99 sieving programs. Low-noise and maintenance free. Test sieves can be changed easily by using the quick-release clamping system TwinNut.


  Sieve diameters	200 mm, 203 mm (8"), 250 mm, 300 mm, 305 mm (12"), 315 mm
  Sample weight	approx. 6 kg
  Weight of sieve set	max. 21 kg
  Operating voltage	230 Volt or 110 Volt with transformer, 50-60 Hertz
  Amplitude	constant, self-readjusting amplitude up to maximal 2 mm
  Timer	0-99 minutes or permanent operating
  Power consumption	ca. 410 VA with full charge
  Sound emission	≤ 70 dBA
  Weight	approx. 53 kg (without test sieves)
  Dimensions	404 x 440 x 1000 mm (D x W x H)

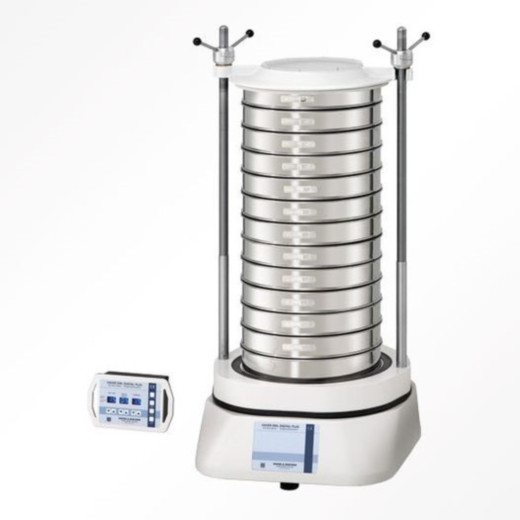

• The HAVER EML 450 digital plus for test sieves with diameters of up to 450 mm can be used for dry and wet sieving of 15 kg bulk material maximum. It is the largest electromagnetically driven 3D test sieve shaker of HAVER & BOECKER. You can set and store sieving time, interval and amplitude for reproducible sieving results.


  Controlled sieving action
  • The 3D sieving action saves time and manual re-sieving.
  • Self-readjusting amplitude for comparable sieving results.

  Further advantages at a glance
  • Memory of 99 sieving programs.
  • Low-noise and maintenance free.
  • Test sieves can be changed easily by using the quick-release clamping system TwinNut.


  Technical data


  Sieve diameters	200 mm*, 203 mm (8")*, 300 mm, 305 mm (12"), 315 mm, 350 mm, 400 mm, 450 mm
  Sample weight	approx. 15 kg
  Weight of sieve set	max. 42 kg
  Operating voltage	230 Volt oder 110 Volt with transformer, 50-60 Hertz
  Amplitude	constant, self-readjusting amplitude up to maximal 2 mm
  Timer	0-99 minutes or permanent operating
  Power consumption	ca. 1200 VA with full charge
  Sound emission	73 dBA
  Weight	approx. 135 kg (without test sieves)
  Dimensions	585 x 575 x 1300 mm (D x W x H)

• The HAVER UWL 400 for test sieves with frames made from stainless steel or beechwood is designed for dry or wet sieving with coarse sample material. This most powerful test sieve shaker of HAVER & BOECKER is driven by two rotary current unbalanced motors to produce a three-dimensional sieving action.

  For analysis in big dimensions
  • The 3D sieving action saves time and manual re-sieving.
  • Optimal sieving results with great sample quantities due to a robust eccentric drive.
  • Test sieves can be changed easily by using the quick-release clamping system TwinNut.


  Technical data


  Sieve diameters	200 mm*, 203 mm (8")*, 300 mm, 305 mm (12"), 315 mm, 350 mm*, 400 mm, 450 mm*, 300x300 mm, 500x500 mm
  Sample weight	approx. 20 kg
  Weight of sieve set	max. 50 kg
  Operating voltage	230 Volt, 50-60 Hertz
  Amplitude	2.5 mm
  Timer	0-599 min.
  Revolutions	1500 R/min.
  Sound emission	≤ 70 dBA
  Weight	approx. 190 kg (without test sieves)
  Dimensions	600 x 600 x 1260 mm (D x W x H)

• The W.S. TYLER® Ro-Tap® RX-29 for test sieves up to 203 mm diameter reproduces the circular and tapping motion of hand sieving but with an even mechanical action. The W.S. TYLER® Ro-Tap® RX-29 is manufactured by W.S. TYLER®, the American subsidiary of HAVER & BOECKER.

• Most suitable machine for abrasive materials
  • Enables sieving of agglomerating bulk materials.
  • Prescribed in the FEPA-standard for abrasive industry.

  Further advantages at a glance
  • The 2D sieving action saves time and manual re-sieving.
  • Easy handling – only sieving time has to be set.


• Applications
  W.S. TYLER® Ro-Tap® RX-29 - application examples
  • Diamonds
  • AbrasivesMetal powder and metal swarf
  • Powder
  • Tobacco
  • Cacao
  • Mining Industry


• Suitable test sieves for your application
  It depends on your application which test sieves should be used for sieve analysis with the W.S. TYLER® Ro-Tap® RX-29. It is suitable for up to 6 test sieves with full height or 13 half-height sieves and one sieve pan with a diameter of up to 203 mm (8”) or 200 mm.

  Please note that the W.S. TYLER® Ro-Tap® RX-29 without cupboard does not reach the requirements of CE-labelling. We therefore recommend to use the CE-execution with safety cupboard with external control gear (W.S. TYLER® Ro-Tap® RX-29 CE).


  Technical data


  Sieve diameters	200 mm, 203 mm (8")
  Sample weight	approx. 3 kg
  Operating voltage	230 Volt or 115 Volt, 50-60 Hertz
  Timer	0-99 minutes
  Taps per minute	150
  Oscillations per minute	278
  Drive	electric motor with worm gear
  Sound emission	86 dBA
  Weight	ca. 82 kg (without test sieves)
  Dimensions	710 x 540 x 640 mm (B x T x H)

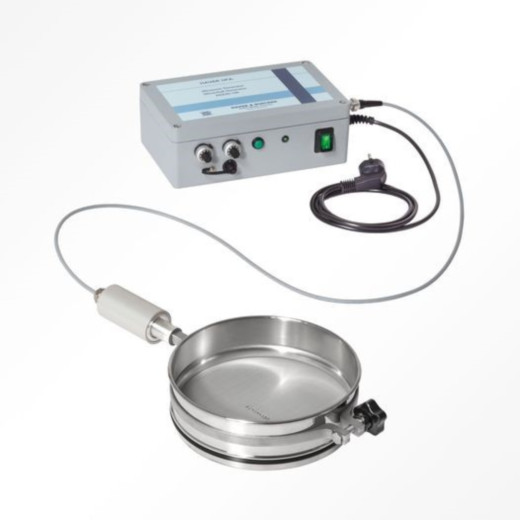

• The HAVER UFA is especially designed for the sieving of powders at critical particle size cuts of ≤ 300 micron. The screen is excited by means of ultrasonic wave at continuously varying frequency.

• Your advantages at a glance
  • Increase of throughput of bulk materials ≤ 300 μm
  • Clogging tendency is reduced and disintegration of agglomerated material is promoted
  • Sieving performance is increased and sieving times shortened
  • Permanent sieve mesh cleaning effect with less mechanical wear on the screens
  • Several test sieves can be agitated at the same time with a single generator


• Technical data


  Clamping ring	ø 200 mm, 203 mm, 300 mm, 400 mm
  Converter	Connector cable included
  Analogue generator	AGS35-100 Weight: 3.3 kg Ultrasonic power: 20-100 W (stepless adjustment) Operating modes: continuous / pulsating Protection class: IP 65
  Digital generator	DGS35-50-T Weight: 3.6 kg Ultrasonic power: 50 W max. Protection class: IP 65

HAVER USC test sieve cleaners guarantee that sieves are cleaned thoroughly and gently while at the same time saving energy. They have proved to work outstandingly well in conjunction with the HAVER USC cleaning fluid. USC cleaners are available for cleaning individual sieves and for the simultaneous cleaning of up to five sieves.

USC 200 S	USC 500 S	USC 200 multi

• Your advantages at a glance
  • The sieves are cleaned thoroughly and gently while at the same time saving energy.
  • Easy handling.
  • Up to five test sieves can be cleaned simultaneously.


• Technical data


  	USC 200 S	USC 500 S	USC 200 Multi
  Number of sieves	1	1	5
  Sieve diameter	≤ 230 mm	≤ 500 mm	≤ 230 mm
  Oscillation tank (inside) [mm]	Ø 240 x 140	Ø 600 x 245	500 x 300 x 300
  Charge	6 l	57 l	40 l
  Outlet	-	Ball valve G 1/2	Ball valve G 1/2
  Outside dimensions [mm]	Ø 304 x 335	Ø 650 x 455	560 x 360 x 500
  Weight	5 kg	21 kg	27 kg
  Operation voltage	230 V - 240 V	230 V - 240 V	220-240 V; 50-60 Hz
  HF-Frequency	37 kHz	37 kHz	35 kHz
  Power consumption total (W)	150 W	600 W	2 x 1000 W/per.
  Ultrasonic power effective (W)	150 W	600 W	4.50 A
  Ultrasonic max. peak power (W)	600 W	2400 W	F6A
  Sound pressure level (LpAU) 37/80 kHz	<70	<70
  allowable surrounding temperature	5° to 40°
  allowable relative humidity up to 31°C	80 %
  defrosting not  allowable	x

• The HAVER CSA software enables PC-aided analysis of standard sieve systems. Three versions of this software are available which differ in the scale of functions. The results of measurements are documented for quality assurance purposes and can be introduced into statistics and reports due to the complex data processing.

• Your advantages at a glance
  • Simple and precise reports.
  • User friendly and self-explanatory user interface.
  • Complex graphical display and detailed documentation.
  • Works under the operating systems Windows 7.0 and Windows 10.
  • Connection of different types of scales and HAVER test sieve shakers.
  • Report Designer allows own design of the test


• Technical data


  Functions	HAVER CSA BASIC	HAVER CSA EXPERT	HAVER CSA NETWORK
  Input of sieve sets, materials and customers; Analysis report; Protocol (ISO 2591c+ ISO 66165) Particle Size account (ISO 66141)	x	x	x
  Statistic functions, e.f. for materials and customers		x	x
  Expanded account, Example: Sauter mean diameter		x	x
  Account of AFS-numbers according to VDG-data sheet	x	x	x
  Definition of particle limits; Loading of comparable data		x	x
  Graphics: RRSB-Net, cumulative oversize distribution curve	x	x	x
  Data bank functions, Example: searching and reporting		x	x
  Data export to Excel		x	x
  Import of aged data		x	x
  Take over of external data in the context of LIM´s-systems; Example: samples and batch numbers			x
  Transfer to external systems (LIMS) by txt-data-connections			x
  The systematic logging and analysis of all processes (audit trail)		x	x
  Automatic data storage (different modes - daily/monthly)		x	x
  User management with authorization asignment		x	x
